Site Planner

Site Planner answers two placement questions from one map: how many distribution sites you should run, and where each one should sit. You load demand, choose a range of site counts, and the planner solves one design at each count so you can compare them.

Open the planner

In the left rail, under Tools, click Site Planner. The command palette entry is Go to Site Planner.

You can also start from a model: on the Scenarios screen of a network model, the Site planner button opens the planner with that model already bound. The same link is on the site advisor widget in a workspace — Open site planner.

The welcome screen

The first time you open the planner you land on a welcome screen that explains what it does — a scrolling walkthrough of how sites move toward the demand they serve, how designs at different site counts compare, and what the planner is tested on. Open the Site Planner → goes in; Skip the intro → does the same from the foot of the page.

Show this welcome screen decides whether it comes back: Every time, First visit only (the default), or Never. Picking Never notes that "You can still open it any time from the command palette."

Plan from a demand file

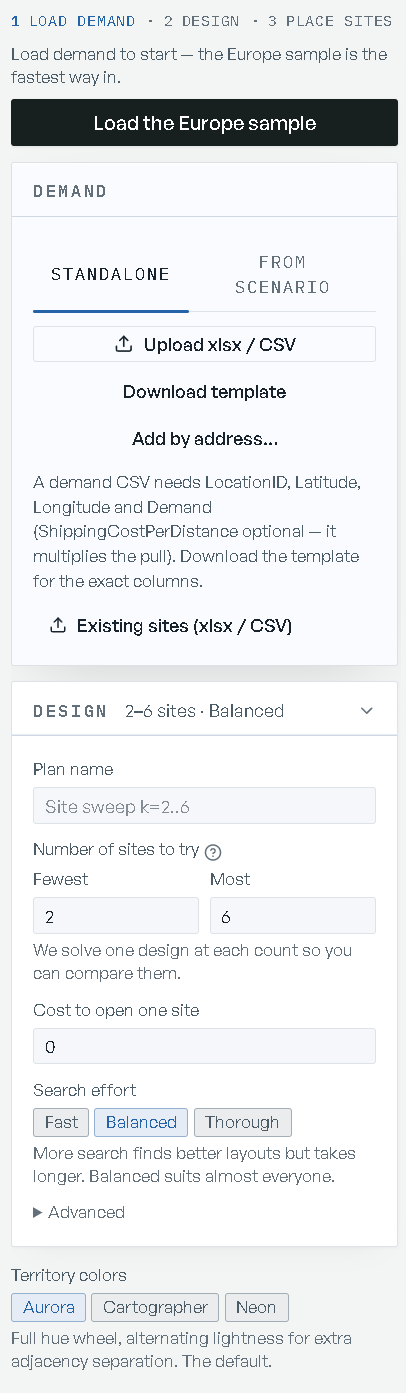

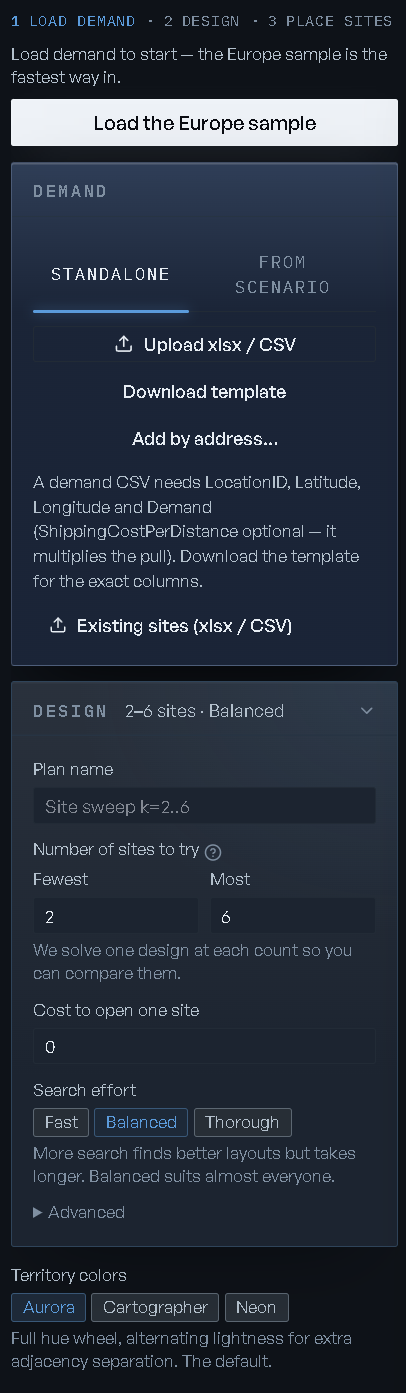

The planner opens on three columns: the controls on the left, the map in the middle, the results on the right. The control rail carries the steps you are working through — Load demand, Design, Place sites.

Read the results

The Results column leads with a verdict — for example "Open 5 sites. Total cost falls 8.3% vs 4 sites. This is the recommended design." — followed by one driver line saying how much of your demand sits within a distance band of those sites. Under it, one row per site: its id, its share of demand, its cost, and a Locked pill where the site is held in place. Selecting a row selects the site on the map, and the other way round.

Ten cards below carry the analysis, each collapsing to a one-line verdict:

Pull comparison runs its own solves: Compare pulls solves the demand three ways so you can see the inbound-against-outbound trade-off, and Re-run comparison repeats it. It needs an existing-sites file to compare against.

Read the figures as what they are. The Assumptions card states it in the run's own terms: distances are a units-by-distance proxy, and the fixed cost per site is a modelling input rather than a real facility cost. Dollar cost, inbound and outbound freight, and service constraints come from your model, not from the planner.

Work the map

• Test a position arms the map; the button becomes Click the map, and your click rescores the current design with the selected site moved there. Dragging a site marker does the same in one gesture. The headline stat shows Test position with the delta until you Clear test.
• The dock under the map plots cost against site count and marks the recommended design (Recommended: N sites). One pill per solved design switches the map to it.
• Replay walks through the cycles the placement went through, Pause holds it, and the scrubber steps cycle by cycle with a cycle N of M readout and the cost at that cycle. With reduced motion on, autoplay is off and the scrubber still works.
• Ghost N sites overlays the design you were looking at before as open markers, so you can see what moved.
• Traffic overlays live road traffic on the basemap. It is off by default.
• Map key names what is on the map: the service area colored per site, customers sized and brightened by demand, each site in its area's color, and locked sites.

Export a design

From the map dock: Site locations (CSV), Customer assignments (CSV), and Board PNG — a light, board-ready image of the map plus the headline numbers. The results column carries Export site locations for the same locations file.

Saved plans

Every run is saved under Recent site plans, which appears once you have one. A row offers Open this run on the map, Rename this run and Delete this run.

Plans are private to the person who ran them. A colleague's plan shows an owner pill instead of a rename control: only the owner can rename a plan, and only the owner or an organization admin can delete one.

Plan from a solved scenario

Switch the Demand zone to From scenario to work from a model instead of a file. Pick a Model — only network models with located facilities are listed — and a Scenario; only solved scenarios are offered.

A Question control then asks which of two jobs you want:

• Move signal reads the scenario's solved freight and tells you how far each of your current sites sits from where that freight pulls it. It places no new sites.
• The redraw choice runs a fresh sweep on the scenario's demand and renders it exactly like a standalone run — same map, same dock, same results cards — then lets you relocate a facility to one of the new sites.

Weighting decides what the read is weighted by: Flow, Cost, or — in Move signal — Opportunity, which weights each lane by the value of one more unit there.

Move signal

The Move signal panel shows a reliability pill — Exact or Estimate — and one row per facility with the distance and compass direction it wants to move, plus a sentence saying what to do about it. Below each row is the decomposition: which counterparties pull it, and how far each one pulls. Compute exact re-solves for an exact read when the panel is showing an estimate.

Moves under 25 km are inside the noise floor and are reported as well placed — the planner does not offer to act on them. Above that, Apply move turns the signal into a real what-if. The dialog names the facility and the suggested position, previews the affected lanes (Lane, Counterparty, Cost / unit, Becomes), and says plainly what the number is: "Not a dollar forecast: each lane's own cost anchors the scale." Create the what-if lands it as a scenario on the model and takes you to that model's Scenarios screen.

Relocate to a swept site

After a redraw, the panel asks Relocate which DC?, tells you how far the nearest new site is from the facility you picked, and offers Relocate to nearest site. It rescales that facility's lane freight by the distance ratio and re-solves, through the same Create the what-if confirmation as Apply move.

Locating by address

Add by address… turns place names and street addresses into coordinates, and it proposes rather than commits. Paste locations one per line — optionally , demand after each — press Add, then Geocode all. Every lookup lands in a review table beside a map preview before any of it becomes demand.

Pin drops that location on the map preview — Click map… while it is armed — so a misplaced coordinate is obvious before you commit.

Two lookups run. Offline is free place-name matching and runs first. Azure resolves street addresses and is paid per lookup — Look up N with Azure sends the rows that need it. Use offline for cities and regions; reach for Azure when you need street-level precision.

The commit bar tallies the state of the table — matched, ambiguous, no-match, to check. Accept remaining N takes the rest as they stand, Export downloads the reviewed rows as a file, and Use N as demand loads them into the planner.

Limits
